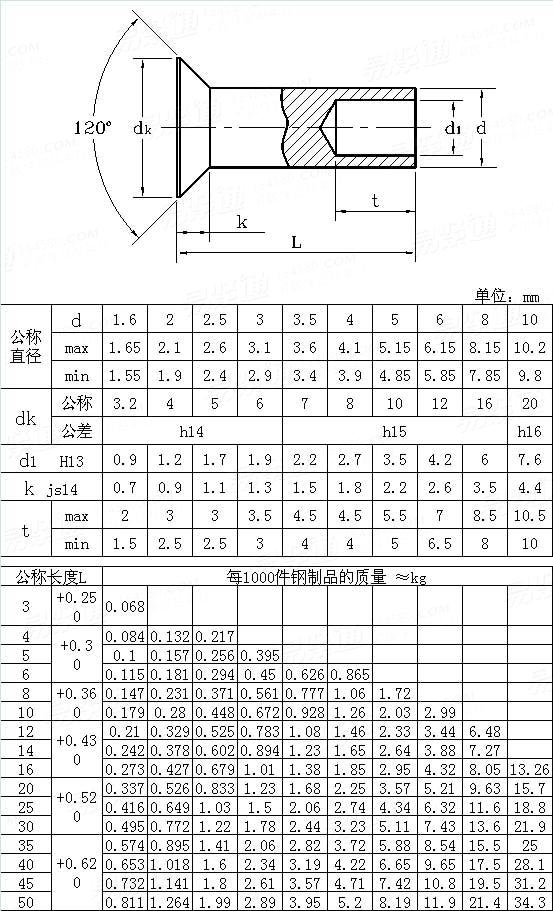

沉頭半空心鉚釘 DIN 6792 - 2011
注：技術數據僅供參考，請以官方原件為準！
類似標準及供貨信息 (18)
| 1 |
|
[國標] GB 874 - 1986 |
120°沉頭半空心鉚釘
120 Degree Countersunk Head Semi-Tubular Rivets 供應商(2) |
| 2 |
|
[國標] GB 1015 - 1986 |
沉頭半空心鉚釘
Countersunk Head Semi-Tubular Rivets |
| 3 |
|
[德標] DIN 6792 - 2012 |
沉頭半空心鉚釘 — 公稱直徑 1.6 - 10 毫米
Semi-Tubular Countersunk Head Rivets - Nominal Diameters 1.6 mm to 10 mm |
| 4 |
|
[德標] DIN 6792 - 1993 |
沉頭半空心鉚釘
Semi-tubular Countersunk Head Rivets - Nominal Diameters 1.6 mm to 10 mm |
| 5 |
|
[日標] JIS D 4312 (R) - 1990 |
汽車制動片襯片及離合器襯片用鉚釘 - 沉頭鉚釘
Rivets of Brake Linings and Clutch Facings for Automobiles - Countersunk Head Rivets |
| 6 |
|
[日標] JIS B 1215 (T4) - 1976 |
沉頭半空心鉚釘 [表4]
Countersunk Head Semi-tubular Rivets |
| 7 |
|
[汽標代號] Q 464 |
120°沉頭半空心鉚釘
120 Degree Countersunk Head Semi-tubular Rivets |
| 8 |
|
[美標] ASME/ANSI B 18.7 - 2001 |
150°沉頭半空心鉚釘Table4
150 Degree Flat Countersunk Head Semi-tubular Rivets |
| 9 |
|
[美標] ASME/ANSI B 18.7 - 2001 |
120°沉頭半空心鉚釘Table6
120 Degree Countersunk Head Semi-tubular Rivets |
| 10 |
|
[美標] ASME/ANSI B 18.7 - 2001 |
沉頭開口型鉚釘Table9
Flat Countersunk Head Split Rivets |
| 11 |
|
[法國] NF E 27-154 - 1952 |
90°沉頭半空心鉚釘
90 Degree Countersunk Head Semi-Tubular Rivets |
| 12 |
|
[法國] NF E 27-154 - 1952 |
120°沉頭半空心鉚釘
120 Degree Countersunk Head Semi-Tubular Rivets |
| 13 |
|
[英標] BS 4895 (B) - 1981 |
B型米制155°沉頭半空心鉚釘
Metric 155° Flat Countersunk Head Semi-tubular Rivets - Style B |
| 14 |
|
[英標] BS 4895 (C) - 1981 |
C型米制155°沉頭半空心鉚釘
Metric 155° Flat Countersunk Head Semi-tubular Rivets - Style C |
| 15 |
|
[英標] BS 3575 - 1963 |
剎車片用150°沉頭半空心鉚釘
150 Degree Countersunk Head Semi-Tubular Rivets for Break Pad |
| 16 |
|
[美標] SAE J 492 - 1968 |
90°沉頭半空心鉚釘 Table 15
90°Countersunk Head Semitubular Rivets |
| 17 |
|
[美標] SAE J 492 - 1968 |
120°沉頭半空心鉚釘 Table 16
120°Countersunk Head Semitubular Rivets |
| 18 |
![沉頭開口型鉚釘 [Table 8]](https://imgccc.164580.com/upload/48/standard/2018/12/04/f2_1543890172.jpg)
|
[美標] ASME B 18.7 - 2007 (R2017) |
沉頭開口型鉚釘 [Table 8]
Flat Countersunk Head Split Rivets |
標準編號 / Standard Code：
DIN 6792 - 2011
中文名稱 / Chinese Name： 沉頭半空心鉚釘
英文名稱 / English Name： Semi-tubular Countersunk Head Rivets - Nominal Diameters 1.6 mm to 10 mm
